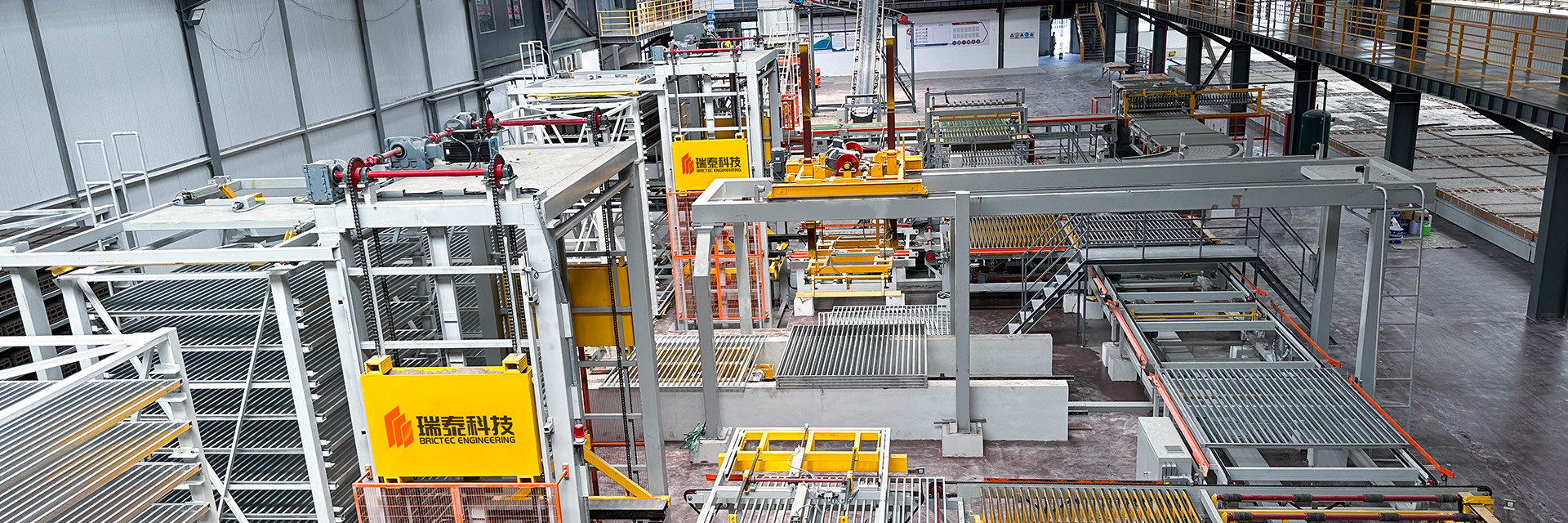

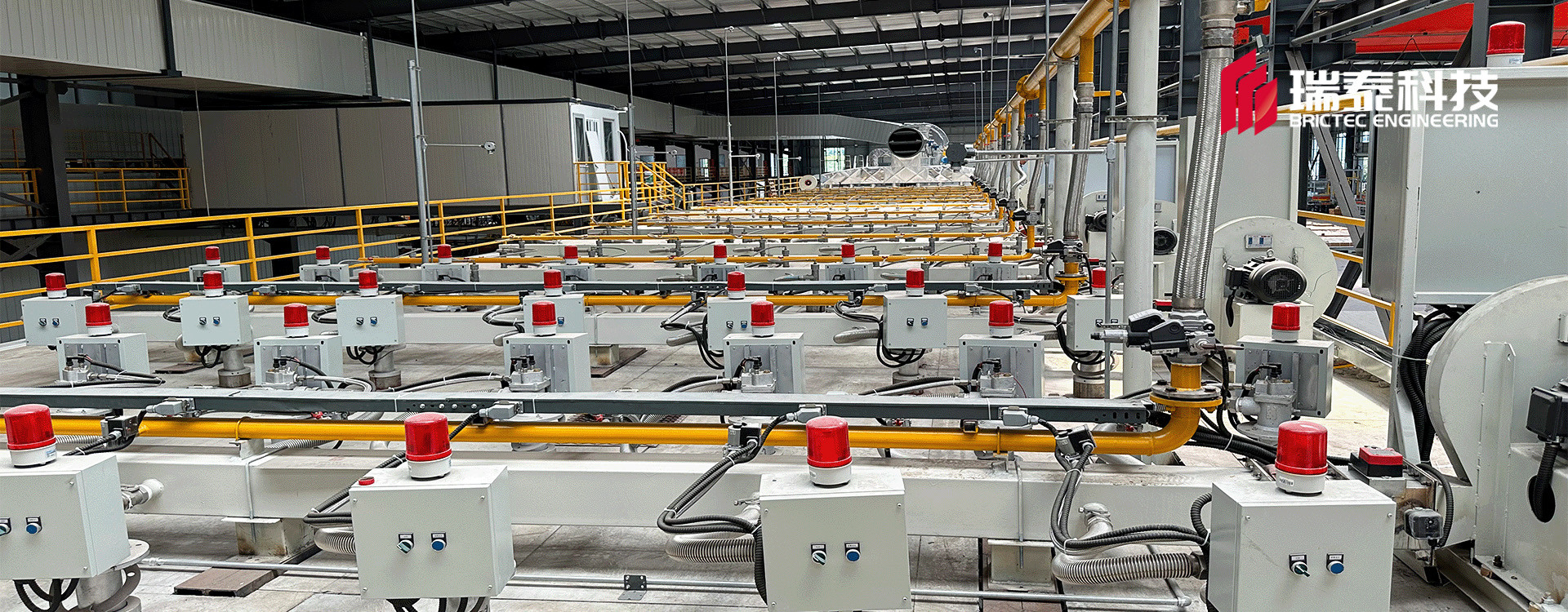

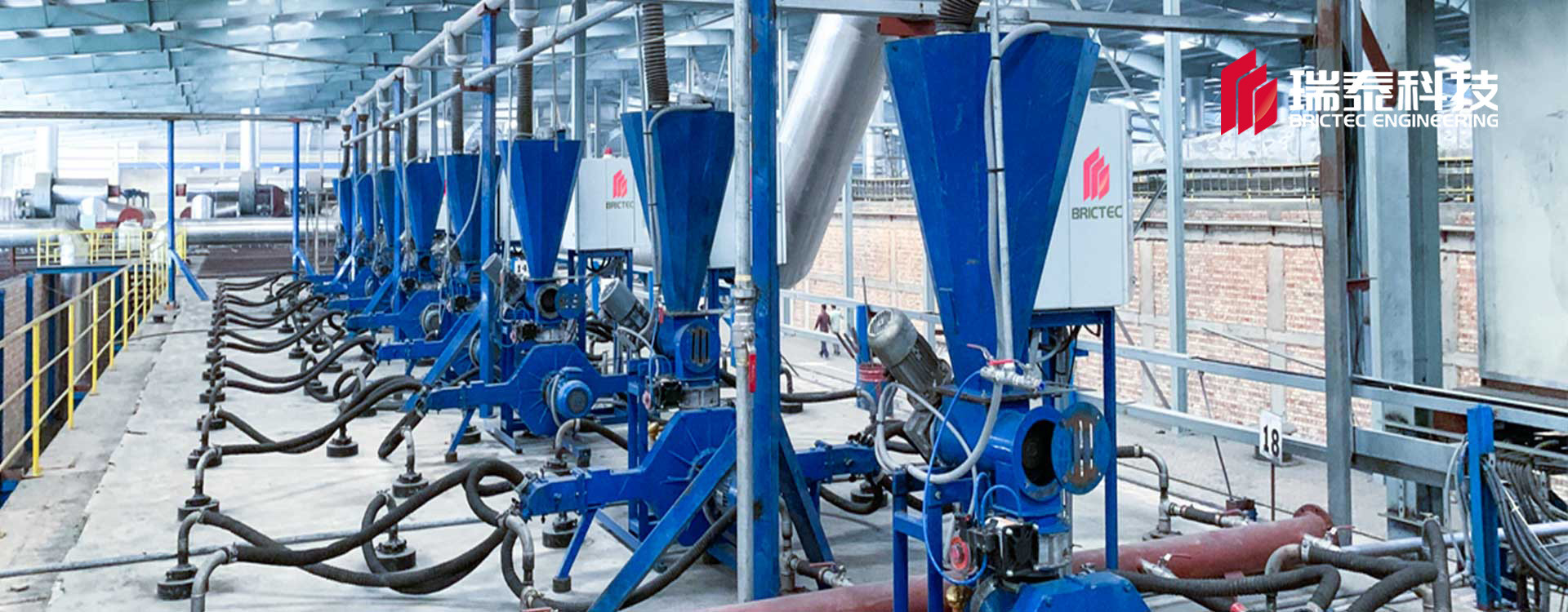

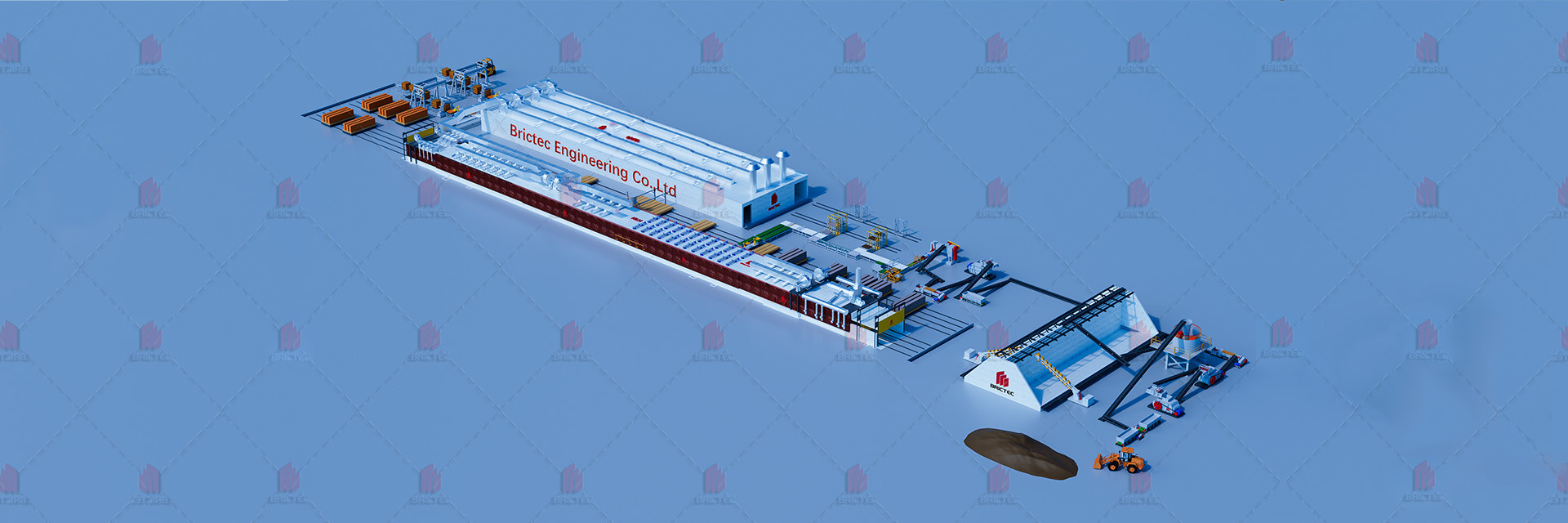

quality Clay Brick Making Machine & Brick Tunnel Kiln manufacturer

.gtr-container-brictec-drying-car-xyz789 { font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif; color: #333; line-height: 1.6; padding: 15px; max-width: 100%; box-sizing: border-box; } .gtr-container-brictec-drying-car-xyz789 p { margin-bottom: 15px; text-align: left !important; font-size: 14px; } .gtr-container-brictec-drying-car-xyz789 strong { font-weight: bold; } .gtr-container-brictec-drying-car-xyz789 .gtr-main-title { font-size: 18px; font-weight: bold; color: #C90806; margin-bottom: 20px; text-align: left; } .gtr-container-brictec-drying-car-xyz789 .gtr-section-title { font-size: 18px; font-weight: bold; color: #C90806; margin-top: 30px; margin-bottom: 15px; text-align: left; } .gtr-container-brictec-drying-car-xyz789 .gtr-subsection-title { font-size: 14px; font-weight: bold; margin-top: 20px; margin-bottom: 10px; text-align: left; } .gtr-container-brictec-drying-car-xyz789 ul, .gtr-container-brictec-drying-car-xyz789 ol { margin: 0 0 15px 0; padding: 0; list-style: none !important; } .gtr-container-brictec-drying-car-xyz789 ul li, .gtr-container-brictec-drying-car-xyz789 ol li { position: relative; padding-left: 20px; margin-bottom: 8px; font-size: 14px; text-align: left; list-style: none !important; } .gtr-container-brictec-drying-car-xyz789 ul li::before { content: "•" !important; position: absolute !important; left: 0 !important; color: #C90806; font-size: 16px; line-height: 1; } .gtr-container-brictec-drying-car-xyz789 ol li { counter-increment: none; list-style: none !important; } .gtr-container-brictec-drying-car-xyz789 ol li::before { content: counter(list-item) "." !important; position: absolute !important; left: 0 !important; color: #C90806; font-weight: bold; width: 18px; text-align: right; } .gtr-container-brictec-drying-car-xyz789 img { max-width: 100%; height: auto; margin-top: 20px; margin-bottom: 20px; } @media (min-width: 768px) { .gtr-container-brictec-drying-car-xyz789 { padding: 25px; max-width: 960px; margin: 0 auto; } } Brictec Drying Car Manufacturing Technical Standards High-Reliability Drying Car System Design for Modern Sintered Brick Production Lines Brictec Point of View: "Uniform drying is superior to rapid drying" for drying cars. "Galvanized anti-corrosion standards are a key quality indicator" for drying cars. "Stability of the automation system" for drying cars is one of the critical factors determining the efficiency and quality of high-end automated brick plants. In modern clay sintered brick production lines, the drying car (also referred to as dryer car) serves as an important conveying and supporting equipment linking the forming and firing processes. Its structural design and manufacturing quality directly affect the drying uniformity of green bricks, production efficiency, and equipment service life. Common types of drying cars currently used in the industry primarily include: Steel structure drying car Cast iron drying car As brick plants move towards high automation, long service life, and low maintenance, the manufacturing process for drying cars has gradually developed into a systematic quality control standard. Brictec, drawing on international advanced experience, proposes the following technical requirements for the design and manufacturing of drying cars. I. Structural Design Principles of Drying Cars 1.1 Structural Strength and Stability Design Drying cars are subjected to the following during operation: Load from multi-layer green bricks Thermal stress effects (temperature cycling) Long-term operational fatigue Therefore, the structural design must meet the following requirements: Utilize high-strength steel sections or composite structural frames Perform finite element analysis (FEA) for strength verification on key load-bearing areas Prevent structural deformation or sagging over prolonged use 1.2 Structural Form Selection (Comparison of Different Materials) Steel Structure Drying Car (Traditional) Features: High strength, mature manufacturing process Application: Multi-layer stacking, hollow brick production lines Cast Iron Drying Car Features: Excellent corrosion resistance Strong resistance to thermal deformation Good thermal stability Advantages: Better suited for high-temperature flue gas drying systems Long service life Application: Utilizing kiln waste heat for drying High-end automated brick plants II. Thermal Performance Design Requirements for Drying Cars 2.1 Heat Transfer Performance Control Drying car design must balance: Uniform heating of upper and lower brick layers Stability of drying rate Key control points: Matching thermal conductivity of the car deck material Avoiding localized overheating or cold spots Ensuring uniform hot air flow through the brick layers 2.2 Multi-Layer Stacking Compatibility Design When producing hollow bricks or low-strength green bricks: intermediate partition plates must be installed, typically dividing into 2–3 layers. Design requirements: Sufficient strength of partition plates Ensuring ventilation gaps Avoiding localized pressure deformation III. Corrosion Protection and Surface Treatment Processes for Drying Cars 3.1 Galvanized Anti-Corrosion Standard (Key Quality Indicator) For brick plant equipment, drying cars typically employ: Hot-dip Galvanizing Recommended technical standards: Galvanized coating thickness: ≥ 80–120 μm For highly corrosive environments (high humidity + high temperature): Recommended ≥ 120 μm Process requirements: Surface sandblasting (Sa2.5 standard), uniform coating without missed spots, no blistering, peeling, or cracks 3.2 High-Temperature Protection Design For high-temperature drying systems: key components require heat-resistant coatings to prevent oxidation and thermal fatigue. Optional processes: Silicone heat-resistant coating, high-temperature anti-corrosion paint. IV. Operating System and Track Matching Standards 4.1 Gauge and Wheel Track Design Industry standards: Wheel track: 610 mm; Rail gauge: 600 mm; Rail specification: 8 kg/m Design requirements: Reasonable wheel-rail clearance, ensuring stable operation without deviation 4.2 Wheel and Bearing System Quality control focus: Adoption of high-temperature resistant bearing structures Dust-proof bearing seal design Wheel materials must possess: Wear resistance Thermal fatigue resistance Impact resistance V. Manufacturing Processes and Quality Control System 5.1 Welding Process Standards Key structural welds use CO₂ gas shielded arc welding. Welds undergo: Non-destructive testing (UT / MT) to prevent cracks and porosity. 5.2 Dimensional Accuracy Control Key control points: Car deck flatness, consistency of wheel gauge, diagonal tolerance of the frame, ensuring that drying cars do not deviate or wobble during long-distance operation. 5.3 Factory Testing Standards Prior to delivery, Brictec drying cars must undergo: Static load testing Dynamic operational testing Anti-corrosion coating inspection VI. Advantages of Brictec Drying Car Systems Combining international standards with engineering practice, Brictec drying cars offer the following advantages: (1) Structural Advantages High-strength modular design Strong resistance to deformation Adaptable to various brick types (2) Thermal Advantages Uniform drying Reduced cracking and deformation Improved product yield (3) Durability Advantages High-standard galvanized anti-corrosion Suitable for high-temperature and high-humidity environments Long service life (4) Operational Advantages Smooth operation Low maintenance costs Suitable for automated production lines VII. Brictec Point of View As a critical piece of equipment in sintered brick production lines, the design and manufacturing quality of drying cars directly affect: Drying quality of green bricks Production efficiency Equipment operational stability By introducing advanced manufacturing concepts, Brictec systematically optimizes structural design, thermal performance matching, anti-corrosion processes, and manufacturing standards, resulting in a high-performance drying car system tailored for modern brick plants. This system effectively meets the comprehensive demands of high-end brick plants for: High efficiency Low energy consumption Long service life Automated operation

.gtr-container-p7q2r1 { font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif; color: #333; line-height: 1.6; padding: 15px; box-sizing: border-box; overflow-wrap: break-word; } .gtr-container-p7q2r1 p { font-size: 14px; margin-bottom: 15px; text-align: left; } .gtr-container-p7q2r1 .gtr-title-main { font-size: 18px; font-weight: bold; color: #C90806; margin-bottom: 10px; text-align: left; } .gtr-container-p7q2r1 .gtr-title-sub { font-size: 16px; font-weight: bold; color: #C90806; margin-bottom: 20px; text-align: left; } .gtr-container-p7q2r1 .gtr-section-title { font-size: 16px; font-weight: bold; color: #333; margin-top: 25px; margin-bottom: 15px; text-align: left; } .gtr-container-p7q2r1 .gtr-image-wrapper { margin-bottom: 20px; text-align: center; } .gtr-container-p7q2r1 .gtr-image-wrapper img { height: auto; display: inline-block; vertical-align: middle; } .gtr-container-p7q2r1 .gtr-ordered-list, .gtr-container-p7q2r1 .gtr-unordered-list { margin: 15px 0; padding-left: 25px; } .gtr-container-p7q2r1 .gtr-ordered-list li, .gtr-container-p7q2r1 .gtr-unordered-list li { list-style: none !important; position: relative; margin-bottom: 10px; padding-left: 20px; text-align: left; font-size: 14px; } .gtr-container-p7q2r1 .gtr-ordered-list li p, .gtr-container-p7q2r1 .gtr-unordered-list li p { margin: 0; font-size: 14px; text-align: left; } .gtr-container-p7q2r1 .gtr-unordered-list li::before { content: "•" !important; position: absolute !important; left: 0 !important; color: #C90806; font-size: 1.2em; line-height: 1; top: 0.1em; } .gtr-container-p7q2r1 .gtr-ordered-list { counter-reset: list-item; } .gtr-container-p7q2r1 .gtr-ordered-list li { display: list-item; } .gtr-container-p7q2r1 .gtr-ordered-list li::before { content: counter(list-item) "." !important; position: absolute !important; left: 0 !important; color: #C90806; font-weight: bold; font-size: 1em; line-height: 1.6; } @media (min-width: 768px) { .gtr-container-p7q2r1 { max-width: 960px; margin: 0 auto; padding: 25px; } .gtr-container-p7q2r1 .gtr-title-main { font-size: 24px; margin-bottom: 15px; } .gtr-container-p7q2r1 .gtr-title-sub { font-size: 20px; margin-bottom: 30px; } .gtr-container-p7q2r1 .gtr-section-title { font-size: 18px; margin-top: 35px; margin-bottom: 20px; } .gtr-container-p7q2r1 .gtr-image-wrapper { margin-bottom: 30px; } .gtr-container-p7q2r1 .gtr-ordered-list, .gtr-container-p7q2r1 .gtr-unordered-list { padding-left: 30px; } .gtr-container-p7q2r1 .gtr-ordered-list li, .gtr-container-p7q2r1 .gtr-unordered-list li { padding-left: 25px; } } Tunnel Kiln Solid Fuel Burner System Provides Integrated Solution for Cost Reduction and Efficiency Enhancement in New Energy Lithium-Ion Battery Anode Material Carbonization and Calcination Brictec Tunnel Kiln Burner Project Reaches Critical Pre-Ignition Stage Against the backdrop of continuous capacity expansion and increasingly stringent energy efficiency requirements in the lithium-ion battery anode material industry, the production sector has raised higher demands for the stability and cost control capabilities of thermal equipment. Recently, a significant milestone was achieved in a graphite precursor and lithium-ion battery anode material project — the tunnel kiln solid fuel burner has completed installation and commissioning, officially entering the pre-ignition preparation phase. This project utilizes needle coke, natural graphite, and asphalt as primary raw materials to produce lithium-ion battery anode materials, while also using natural flake graphite to produce graphite precursors. It stands as a strategically positioned new energy material project in the region. Within the overall process, the carbonization step serves as a core stage, exerting a decisive influence on the thermal system's stability, temperature control precision, and energy consumption levels. The tunnel kiln represents the most critical high-energy-consumption equipment in this process. Industry Challenge: The difficulty of balancing high energy consumption with stability. In traditional lithium-ion battery anode material calcination processes, several common issues persist: Suboptimal fuel utilization efficiency, leading to high overall energy consumption. Uneven temperature distribution within the kiln, affecting product consistency. Insufficient operational stability of equipment, increasing maintenance costs and the risk of production stoppages. These issues directly impact production costs and product quality for manufacturers, acting as significant constraints on further industry-wide efficiency improvement and cost reduction. Solution: Customized Tunnel Kiln Solid Fuel Burner System To address the challenges mentioned above, this project has introduced a tunnel kiln solid fuel burner solution provided by Brictec. This system is specifically designed based on the characteristics of the carbonization process for lithium-ion battery anode materials, focusing on enhancing combustion efficiency and system stability. In terms of fuel adaptability, the burner efficiently utilizes solid fuel, achieving complete combustion and minimizing energy waste. Regarding structural design, it effectively improves temperature uniformity within the kiln, ensuring the stability of the calcination process for both graphite precursors and anode materials. Additionally, the system incorporates enhanced energy-saving control features, contributing to a reduction in energy consumption per unit of product, thereby addressing production costs at the source. Key Milestone: Installation and Testing Completed, Entering Ignition Phase Following continuous construction and systematic commissioning, the tunnel kiln solid fuel burner has now completed all installation and testing work, with all operational indicators meeting the predetermined requirements. The equipment operates smoothly overall, and the control system responds as expected, confirming readiness for ignition. Upon completion of ignition, the equipment will proceed to the actual production validation phase. This also marks a crucial step in the project's transition from the construction phase towards commissioning and operation. Expected Outcomes: Driving Cost Reduction, Quality Improvement, and Scalable Production Reduce energy consumption in the carbonization process, optimizing the overall production cost structure. Enhance temperature control precision within the kiln, improving product consistency and quality stability. Increase equipment operational reliability, minimizing unplanned downtime. Provide a stable foundation for subsequent capacity ramp-up. Against the current backdrop of intensifying competition in the new energy materials sector, such technological optimizations focused on core processes will serve as crucial levers for enhancing corporate competitiveness. The successful completion of installation and testing for the tunnel kiln solid fuel burner underscores the critical value of thermal equipment in lithium-ion battery material manufacturing. With the advancement of the ignition process and subsequent stable operation, the project is poised to further unlock its production capacity, offering a more competitive anode material solution for the lithium-ion battery industry supply chain. Brictec is a specialized manufacturer focused on the production of tunnel kiln burners. Its diverse product range includes natural gas burners, heavy oil burners, and solid fuel burners. Leveraging deep-seated technical expertise and an exceptional level of craftsmanship in the field of burner manufacturing, Brictec's products are renowned for their superior performance and high stability, earning widespread application across various industrial sectors.

.gtr-container-k9m2p1 { font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif; color: #333; line-height: 1.6; padding: 15px; margin: 0 auto; max-width: 100%; overflow-x: hidden; } .gtr-container-k9m2p1 p { margin-bottom: 15px; text-align: left !important; font-size: 14px; } .gtr-container-k9m2p1 strong { font-weight: bold; } .gtr-container-k9m2p1 .gtr-title { font-size: 18px; font-weight: bold; color: #C90806; margin-bottom: 20px; line-height: 1.4; } .gtr-container-k9m2p1 .gtr-section-title { font-size: 18px; font-weight: bold; color: #C90806; margin-top: 30px; margin-bottom: 15px; line-height: 1.4; } .gtr-container-k9m2p1 .gtr-subsection-title { font-size: 14px; font-weight: bold; margin-top: 20px; margin-bottom: 10px; line-height: 1.4; } .gtr-container-k9m2p1 ul, .gtr-container-k9m2p1 ol { margin: 0 0 15px 20px; padding: 0; list-style: none !important; } .gtr-container-k9m2p1 li { position: relative; padding-left: 20px; margin-bottom: 8px; font-size: 14px; text-align: left !important; list-style: none !important; } .gtr-container-k9m2p1 ul li::before { content: "•" !important; position: absolute !important; left: 0 !important; color: #C90806; font-size: 16px; line-height: 1; } .gtr-container-k9m2p1 ol { counter-reset: list-item; } .gtr-container-k9m2p1 ol li::before { content: counter(list-item) "." !important; position: absolute !important; left: 0 !important; color: #333; font-weight: bold; width: 18px; text-align: right; } .gtr-container-k9m2p1 img { margin: 20px 0; } @media (min-width: 768px) { .gtr-container-k9m2p1 { padding: 25px 50px; } } Research on Optimization Design and Performance Enhancement of Vacuum ExtrudersBased on Engineering Practice of Structural Improvement of Dual-Stage Vacuum Extruders In a fired brick production line, the clay fired brick vacuum extruder is the core shaping equipment that determines the quality of green bricks and production efficiency. With the brick and tile industry's increasing demands for product quality, output, and equipment reliability, structural optimization and technological upgrading of vacuum extruders have become particularly important.By researching and analyzing various vacuum extruder equipment developed domestically and internationally, and combining the advanced technical experience of different manufacturing enterprises, a systematic optimization design of key structures is carried out while ensuring equipment performance. By selecting technologically mature and economically reasonable supporting components, equipment functionality is enhanced while effectively reducing manufacturing costs, thereby achieving a comprehensive improvement in both equipment performance and economy. I. Optimization Design of Key Components 1.1 Auger Shaft (Main Shaft) Structure Optimization The auger shaft is the core transmission component of the vacuum extruder. Its main function is to transmit power and push the clay mixture forward, while simultaneously bearing significant torque and axial pressure. Therefore, the structural design of the auger shaft directly affects the overall stability and reliability of the machine.In the original vacuum extruder structure, the diameter of the auger shaft at the bearing positions was Φ170 mm, and it utilized three bearings for support (including one thrust bearing). However, during actual operation, this structure presented the following problems:• Relatively small center distance between the front and rear bearings• Relatively long cantilevered section of the auger shaft• Significant deflection of the shaft during operationThis structure tended to cause noticeable shaking of the extruder head during operation (commonly known as the "head shaking" phenomenon). Excessive or prolonged shaking not only affects the operational stability of the equipment but can also lead to component damage and even production shutdowns. According to mechanical theory analysis:Assume the distance from the front bearing center of the auger shaft to the front end of the auger is L₁Assume the center distance between the front and rear bearings is L₂When the following condition is met:L₂ / L₁ ≥ 0.7the auger shaft can maintain good operational stability.In the original equipment structure:L₂ / L₁ = 1040 / 1950 = 0.533This is significantly below the reasonable design range, thus indicating a structural design deficiency. 1.2 Structural Improvement Scheme During the optimization design process, the key transmission structure was adjusted to achieve a more rational auger shaft configuration.Main measures included:• Changing the original radial pneumatic clutch to an axial pneumatic clutch• Reducing the axial installation dimensions of the clutch• Moving the auger shaft bearing housing rearward Through the above optimizations:The center distance between the front and rear bearings increased by approximately 400 mm.Under the new structure:L₂ / L₁ = (1040 + 400) / 1950 = 0.74This ratio now meets the requirements for stable operation, making the auger shaft run more smoothly and reliably.Due to the increased structural rigidity, the auger shaft diameter could also be optimized accordingly:Original maximum shaft diameter: Φ185 mmOptimized bearing section diameter: Φ150 mmMaximum shaft diameter: Φ160 mmAfter structural optimization:• The shaft weight is significantly reduced• The mechanical structure is more rational• Manufacturing difficulty is decreased Simultaneously, the dimensions of bearings and related components were also reduced, making the entire auger shaft system more compact. II. Pneumatic Clutch System Optimization In the original equipment design, a radial pneumatic clutch was used as the power connection device. This structure had the following disadvantages:• Complex structure• Large footprint• High requirements for installation and commissioning• Strict requirements for equipment alignment accuracy The radial pneumatic clutch required precise alignment with the reducer via a coupling and needed additional support structures, making installation and maintenance more complex.In the optimization design, all radial clutches were replaced with axial pneumatic clutches, installed directly on the high-speed shaft of the reducer.This structure offers the following advantages:• More compact structure• Easier to ensure installation accuracy• More convenient commissioning and maintenance• Significantly reduced equipment weight• Lower requirements for the compressed air systemThrough this improvement, not only was the operational reliability of the equipment enhanced, but the overall transmission structure also became simpler. ​ III. Enhancement of Equipment Production Capacity The original dual-stage vacuum extruder suffered from relatively low output in practical use. Technical analysis identified the main reasons as:• Insufficient feeding capacity from the upper stage• Excessive compression ratio in the tapered cavity• Relatively low conveying speed in the upper stage Compression ratio of the original equipment's tapered cavity:λ = 2.6This value was close to the upper limit of the design allowable range.The typical reasonable range is:λ = 2.0 – 2.6An excessively large taper reduces the conveying speed of the clay mixture, decreasing the amount of material entering the vacuum chamber per unit time, thus limiting the overall machine output.In the optimization design, by adjusting the structural dimensions of the inner and outer tapered sleeves, the compression ratio was optimized to:λ = 2.3Furthermore, due to the replacement with the axial clutch, the rotational speed of the upper stage was appropriately increased, significantly enhancing the clay conveying capacity.After optimization:The amount of clay mixture entering the vacuum chamber per unit time increased by approximately 22%.The production capacity of the new dual-stage vacuum extruder improved by about 25% compared to the original model. IV. Structural Lightweighting and Manufacturing Optimization During the overall equipment optimization process, systematic improvements were made to several structural components to enhance manufacturing efficiency and structural rationality. 4.1 Structural Weight Optimization While ensuring equipment strength and performance, structural optimization was carried out on the following key components:• Feeding box• Vacuum chamber• Machine body structureBy optimizing casting structures and machining processes, the overall weight of the equipment was significantly reduced, while processing efficiency was improved. 4.2 Standardization of Component Design In the original equipment design, some auxiliary components such as:• Filters• Motor slide rails• Lighting systems• Vacuum chamber inspection doors• Varied in structure across different equipment models. In the optimization design, by implementing standardized component design, the following goals were achieved:• Utilizing unified structural parts for different equipment models• Making only appropriate dimensional adjustments• Establishing a system of internal enterprise standard parts This measure brought significant production advantages:• Reduction in the variety of parts• Increased batch production capability• Enhanced processing efficiency• Reduced manufacturing complexity V. Effects of Optimization Design Structure• More compact equipment structure• More rational transmission system• Increased standardization of components Performance• More stable operation of the auger shaft• Significantly improved production capacity• Enhanced equipment operational reliability Manufacturing• Optimized equipment weight• Improved processing and manufacturing efficiency• More rational overall structure In summary, the optimization design has not only elevated the equipment's technical level but also improved production efficiency and equipment reliability, enabling the vacuum extruder to deliver greater value in brick production lines.
